Scott's Computer Cabinet Project Initial Construction Page

I needed a computer cabinet, and no one makes what I wanted. The only option was to build one myself.

This page documents the initial construction of the large major pieces of the cabinet. This involved taking the smaller parts made during the previous stage of construction and assembling them into the larger constructs.

Click on any of the pictures for a larger view.


Initial Construction

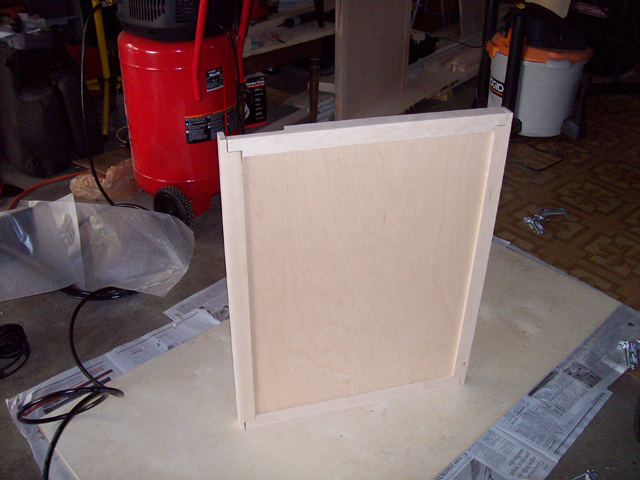

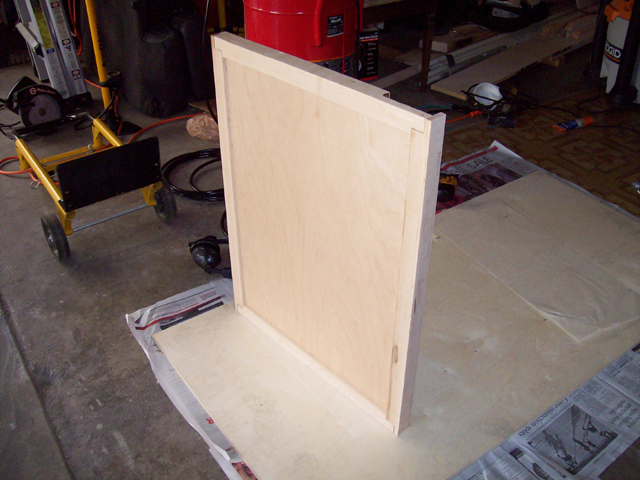

Finished side

One of the sides completed and ready to go.

 Finished side alternate view

Another view of the finished side ready for assembly of the cabinet.

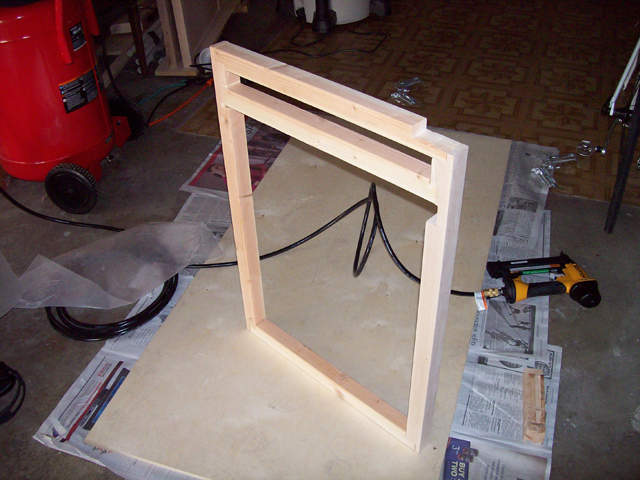

Middle leg completed

View of the middle leg. The front is maple and the rest pine as it will be hidden.

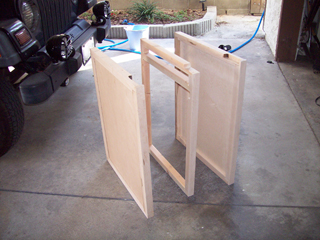

 The completed sides

The two sides and the midle leg all ready for complete assembly of the cabinet.

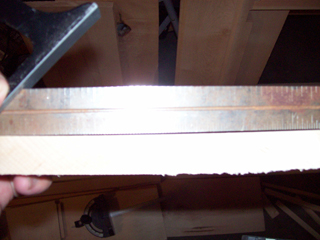

Warped wood

The wood originally bouight for the top was so warped that it had to be replaced.

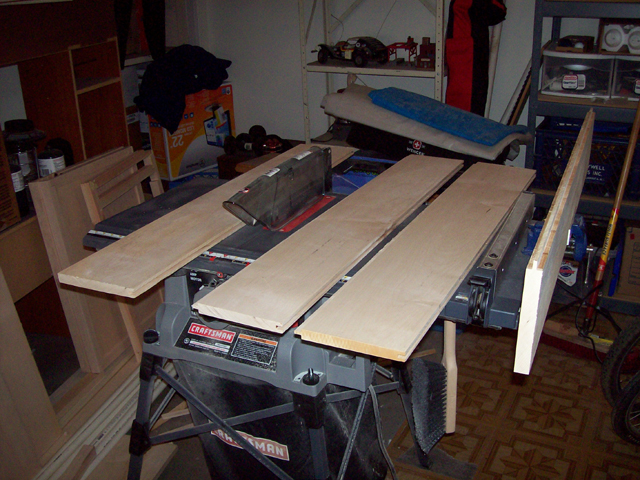

 Parts for the top

The parts that will become the cabinet top.

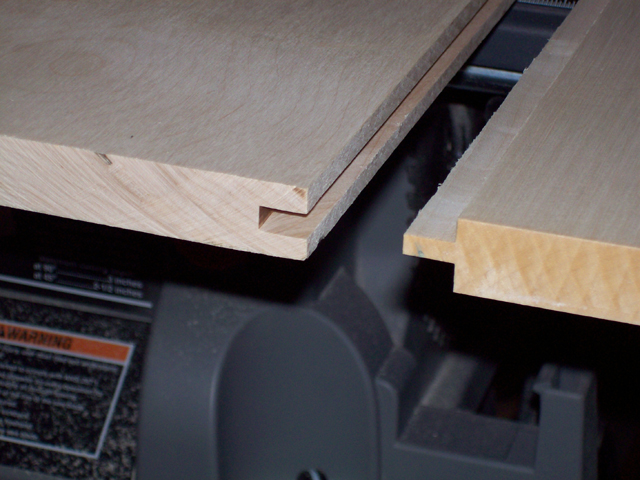

Tongue and groove

Close-up of the tongue and groove detail for joining the top.

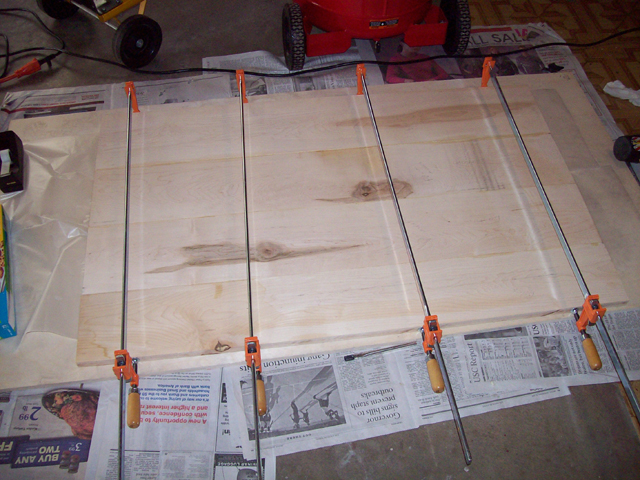

 Assembled top

The assembled top for the cabinet.

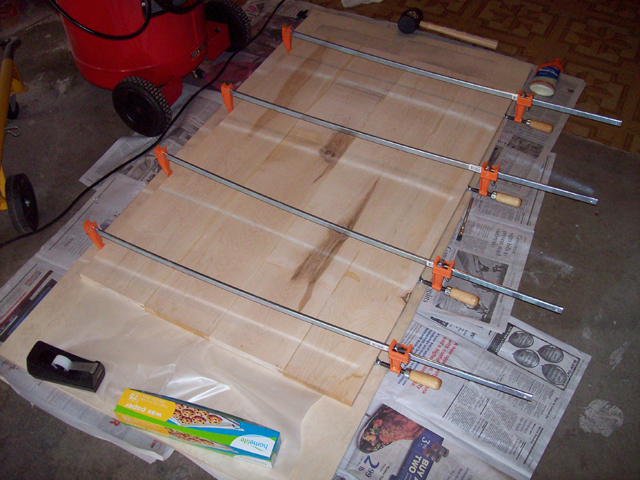

Another view of top

Another view of the assembled top for the cabinet.

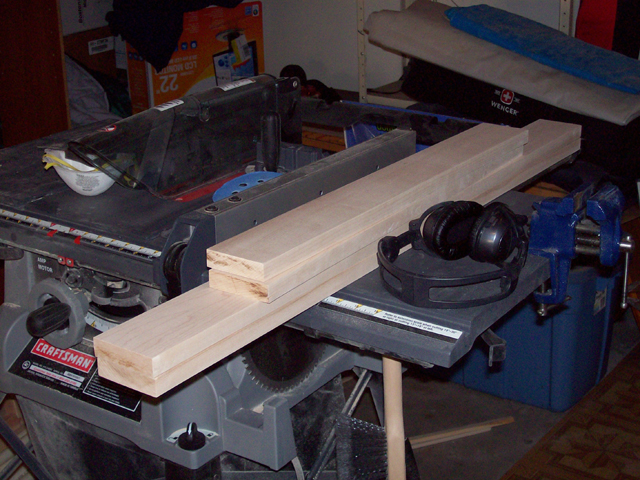

 Front cabinet parts

Parts that will form the top and bottom cross members in the front and inside supports.

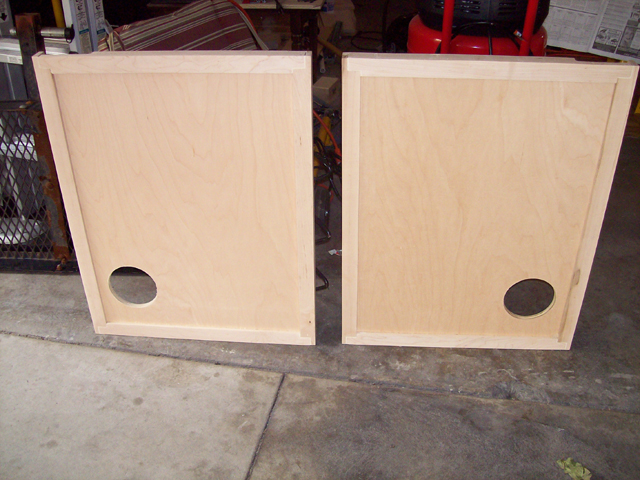

Fan holes added to the sides

Added fan holes to the side panels.

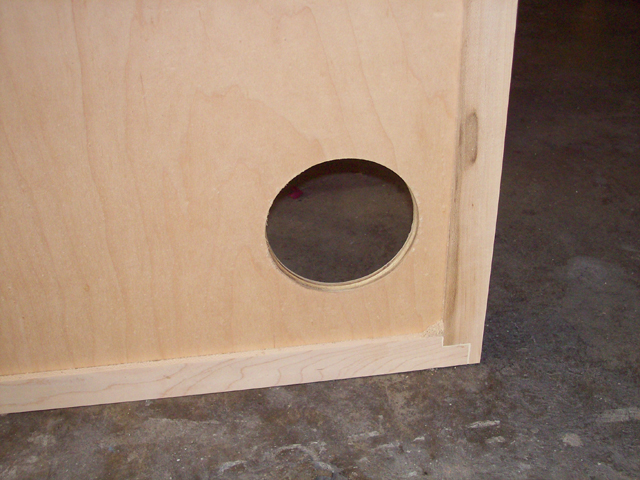

 Closer view of fan holes

A closer view of the holes added to the sides for the cooling fans.
View of fan holes with mounting holes

Added mounting holes to the fan holes in the side panels.

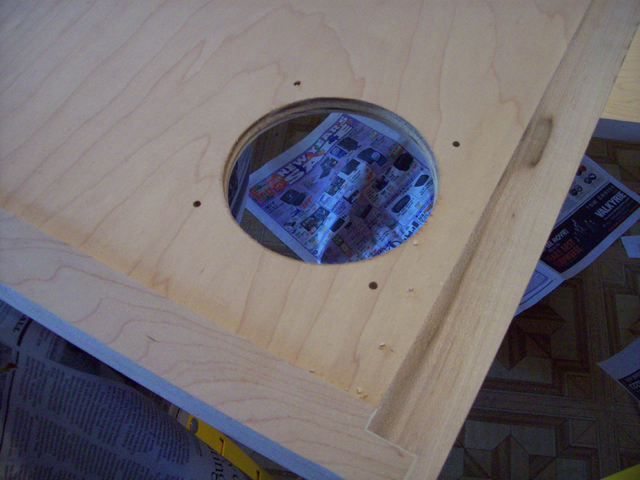

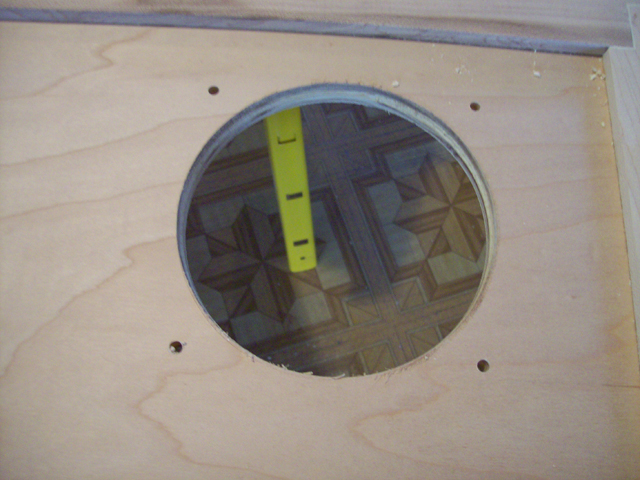

 Closer view of fan mounting holes

A closer view of the holes added to the sides for mounting the cooling fans.
