Scott's Computer Cabinet Project Add-on Page

I needed a computer cabinet, and no one makes what I wanted. The only option was to build one myself.

This page documents the work completed after the cabinet was done. I was able to build some add-on parts for the cabinet. When possible, I used scrap material from the original construction.

Click on any of the pictures for a larger view.



Add-on Parts

-->
Hutch Design Sketch Page

View of the page I sketched the design for the hutch upon.

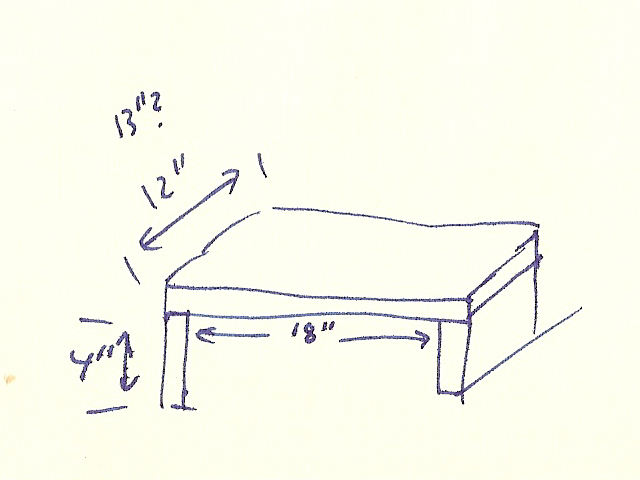

Close-up of the Hutch Design

This was all I had to work with in design of the hutch. The design was based on actual VCR measurements.

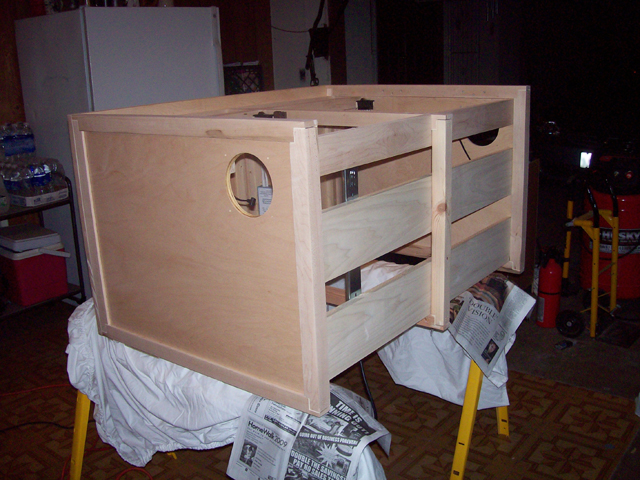

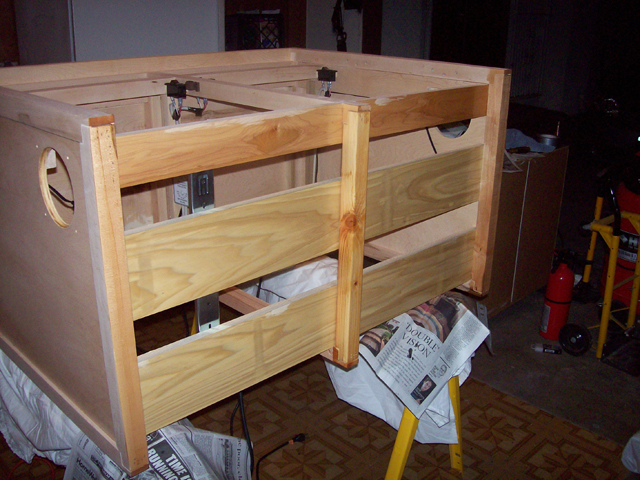

Cabinet Body Ready To Finish

View of the cabinet body as it rests on the saw hourses on its back ready to finish the bottom.

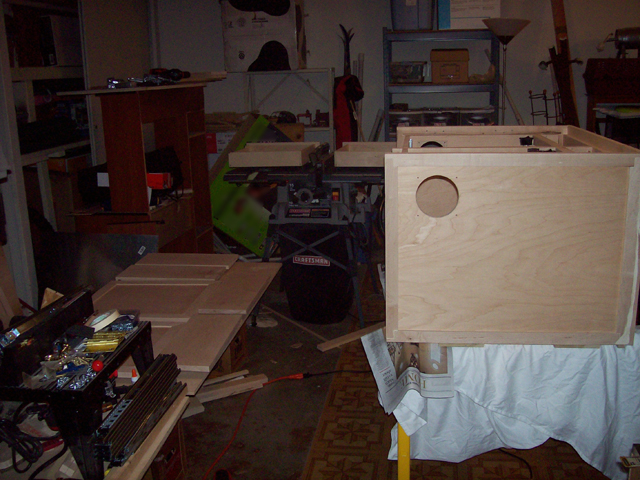

The Cabinet, Ready To Finish

View of all the cabinet parts ready to begin finishing.

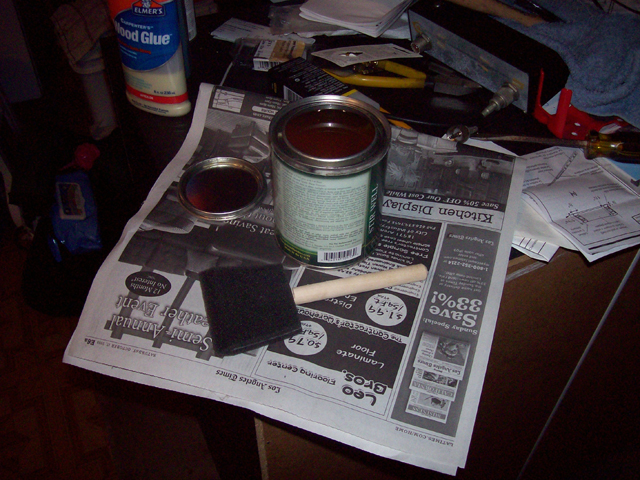

The Finish

View of the finish and the sponge applicator, at least one of the ones that will be used.

The Finished Bottom

View of the bottom after the finish was applied. Actually noticed after viewing this photo that I had missed a few spots and went back to get them later.

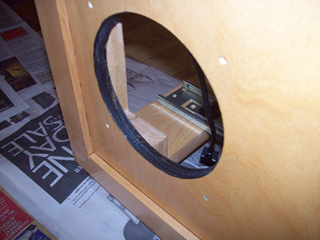

Fan Hole Staining

Since the sides were veneered plywood, dark stain was applied to cover the obvious visual issue in the fan cutouts.

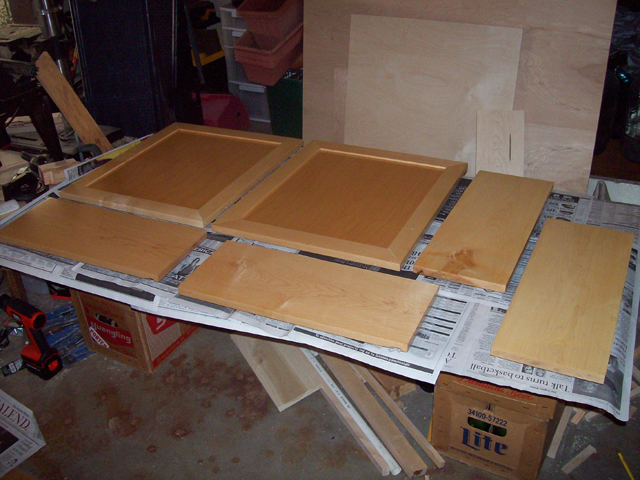

Finished Parts

View of the doors and shelves after finish.

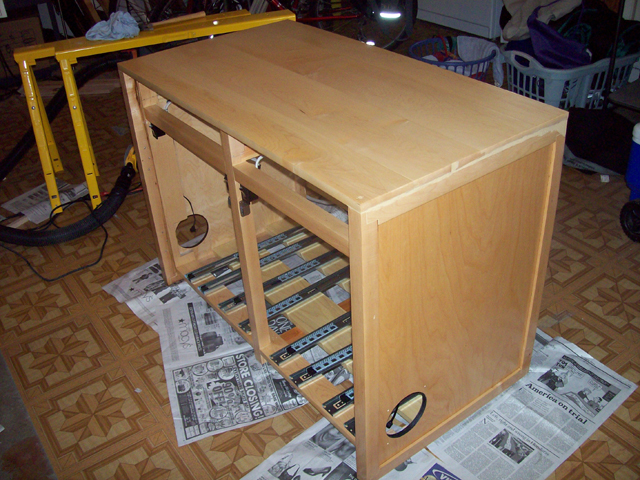

Mounted Top Front

View of the cabinet base after the finish was applied.

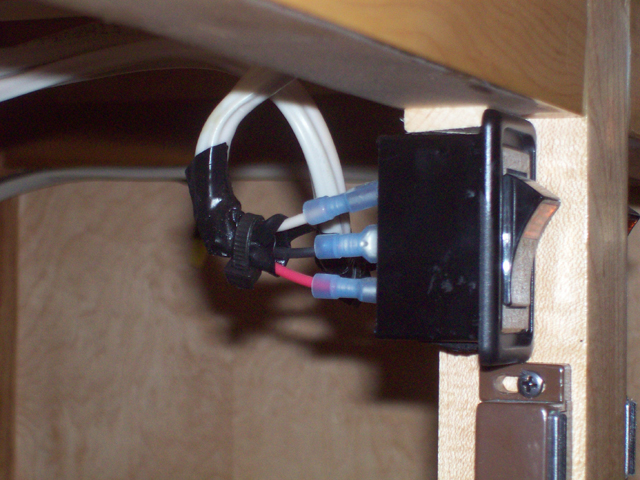

Problem Inserting Drawers

View of the finishing of the switch wiring. The electrical tape was releasing, so a zip tie secured each connection.

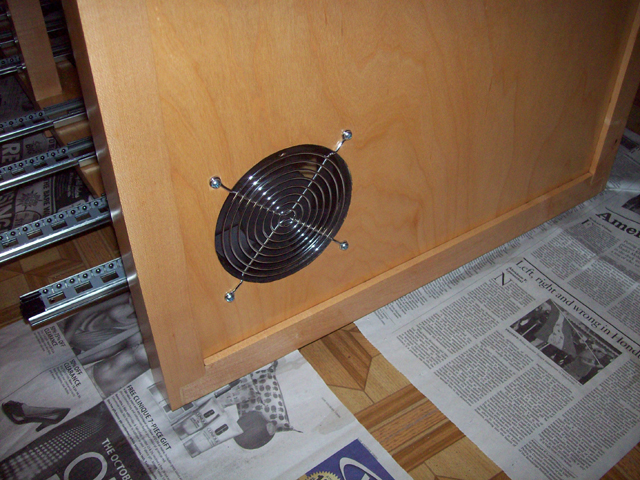

Outside View of a Fan

Outside view of one of the fans after final installation.

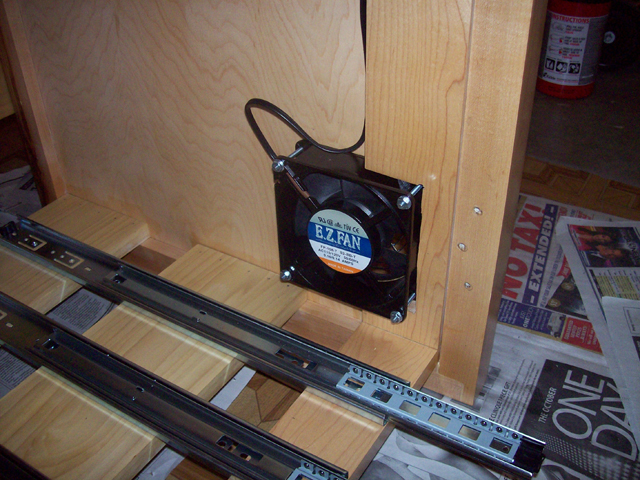

Inside View of a Fan

Intside view of one of the fans after final installation.

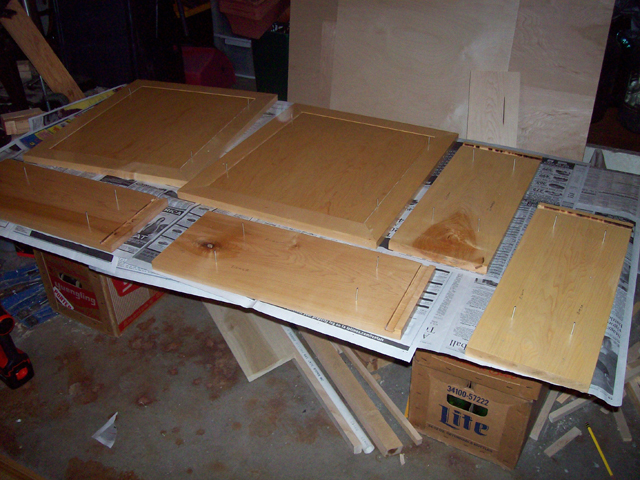

Finished Parts

View of the doors and shelves showing the finishing nails used to elevate them and allow finishing of the front and back at the same time.

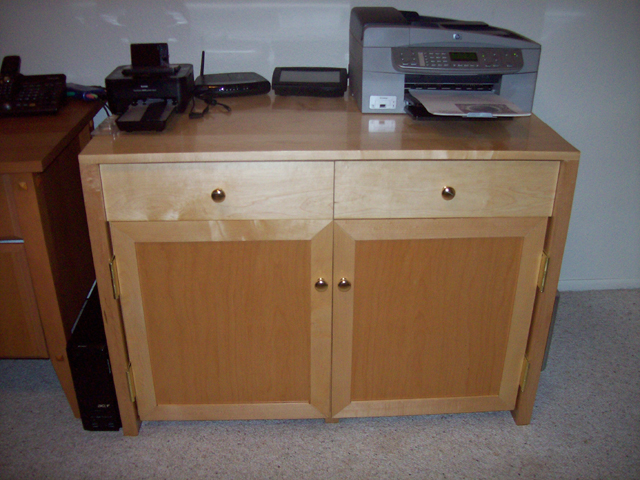

Front View of Finished Cabinet

View of the cabinet from the front after being finished and reassembled.

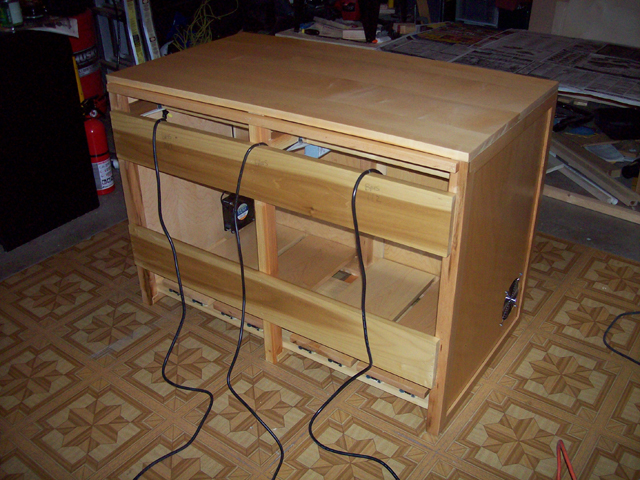

Rear View of Finished Cabinet

View of the cabinet from the rear after being finished and reassembled.

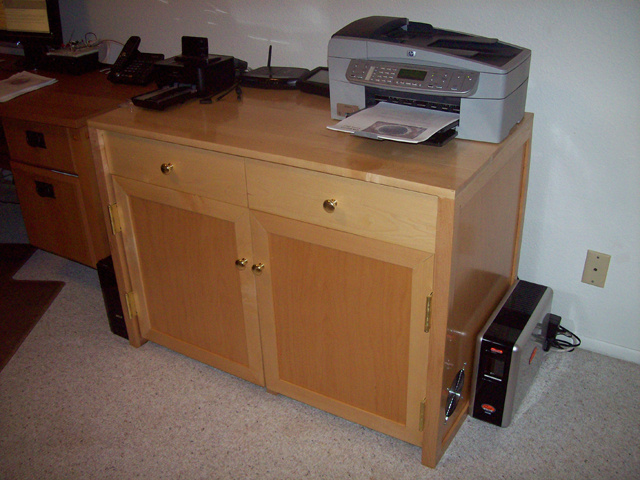

Completed and Installed Cabinet

View of the completed and installed computer cabinet.

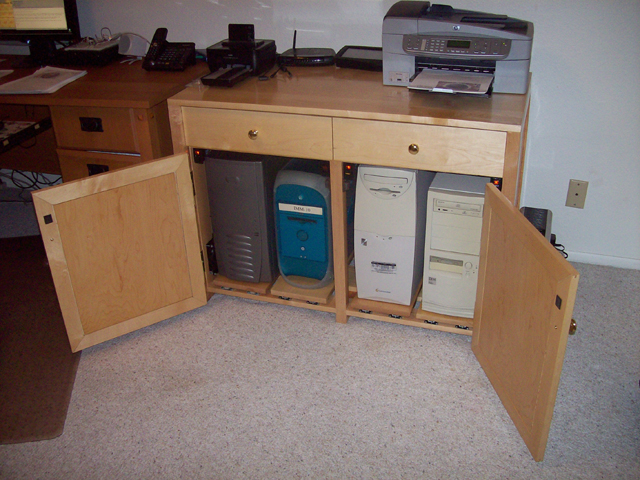

Installed Computers

View of the computers installed in the cabinet.

Another View of Installed Cabinet

Side view of the completed and installed cabinet.
